KWALITY TUBESOne stop solution · Since 1991

Seamless and welded pipe.

Sch. 5S to XXS

Buttweld fittings and bends.

Elbows · Tees · Reducers

Flanges to ASME B16.5.

150# to 2500#
0%

Every heat number traced.

EN 10204 3.1 certification

From Mumbai to the Gulf and beyond.

Export supply

Your BOQ, in motion.

Entering the yard

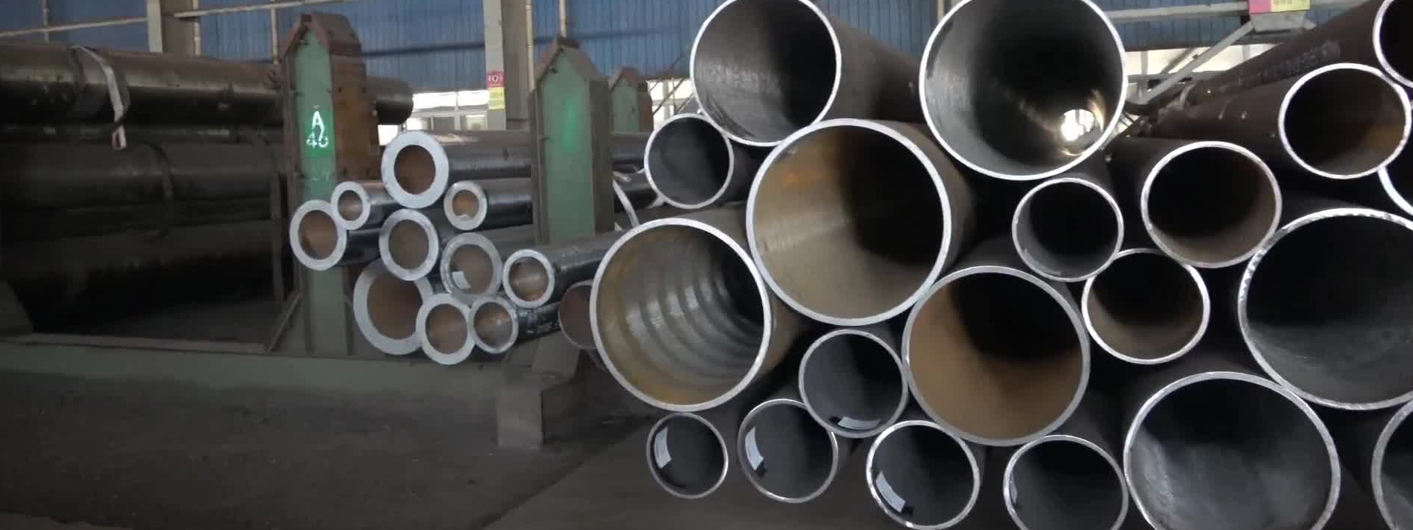

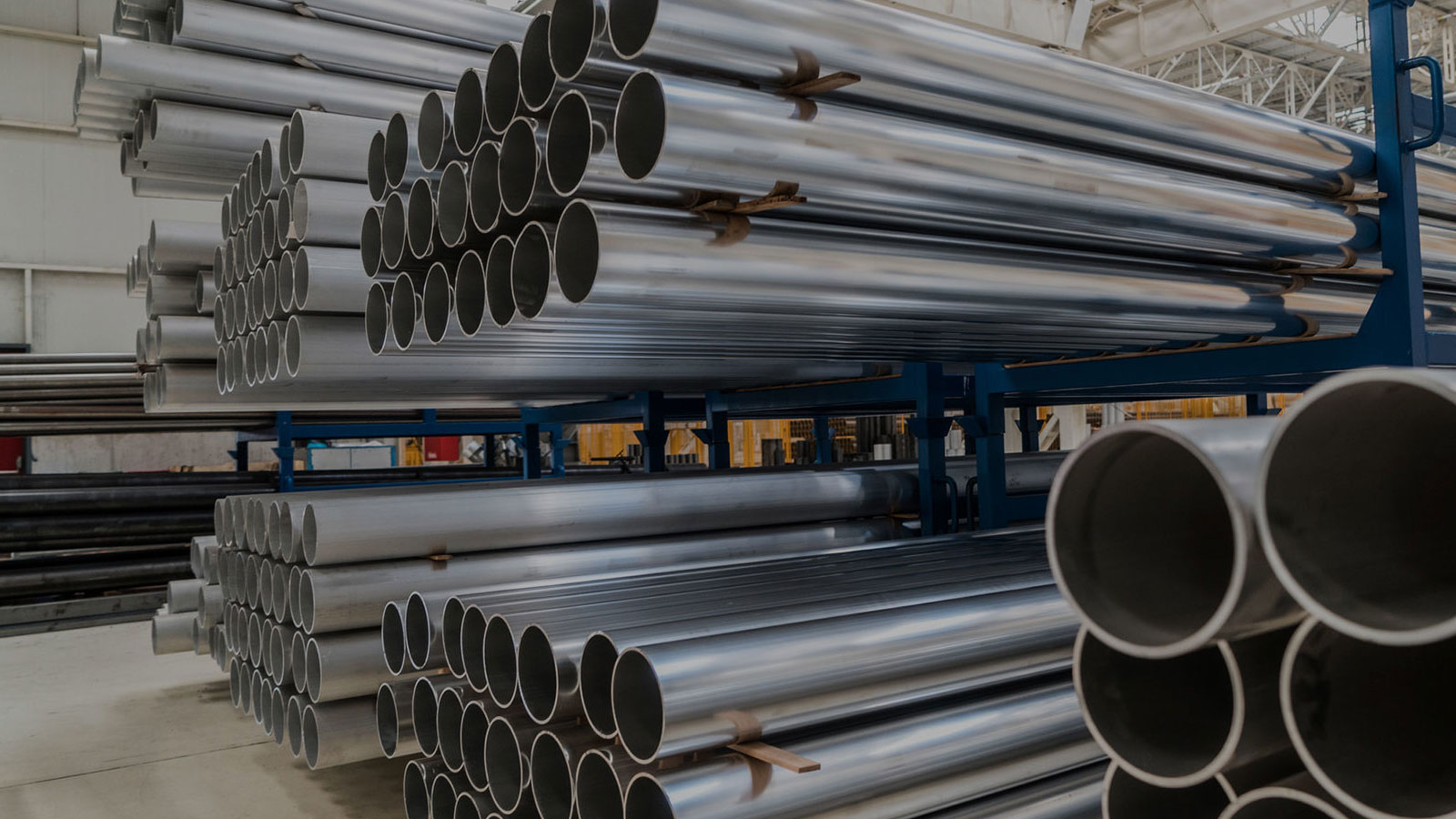

Kwality Tubes stockyard with seamless pipe in racked bundles

Mumbai, India · Established 1991

Pipes, fittings and flanges for severe-duty service.

Kwality Tubes manufactures and supplies piping products in stainless, carbon, alloy, duplex, super duplex and high nickel grades, released against IBR, NACE and third-party inspection.

34+ yrsSupplying since 1991
03Manufacturing & stockyard units
100+Grades supplied regularly
14+Industry sectors served

What leaves the yard

Nine product lines, one set of certificates.

A project package ships complete — pipe, fittings, flanges, fasteners and gaskets against one purchase order, on one document set, so your inspector clears it in a single pass.

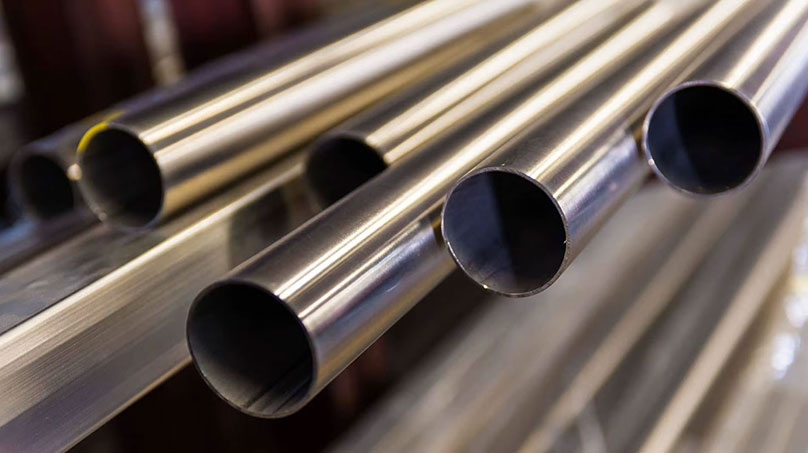

01 · SEAMLESSØ 13.7 – 610 mm
01

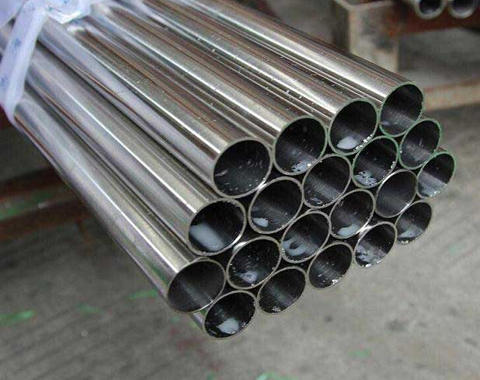

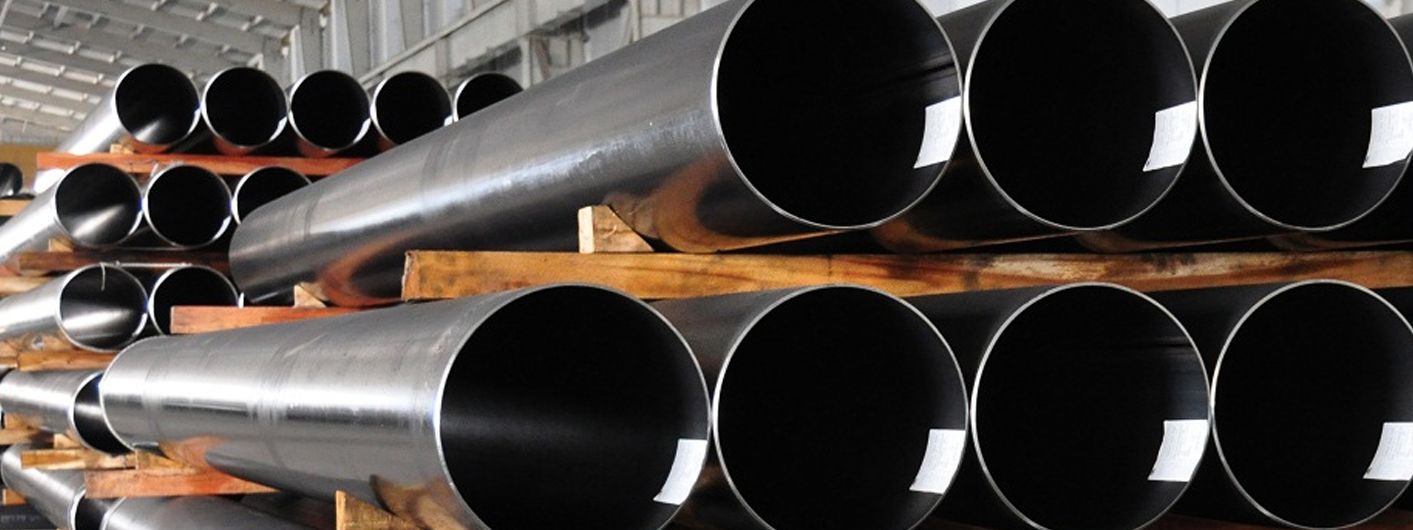

Seamless & welded pipes

SA 312, A 106, API 5L and A 335 in seamless, ERW, SAW and EFSW.

1/4"–24" NB seamless · to 72" NB welded · Sch. 5S–XXS

02 · SAW SEAM16" – 200" OD
02

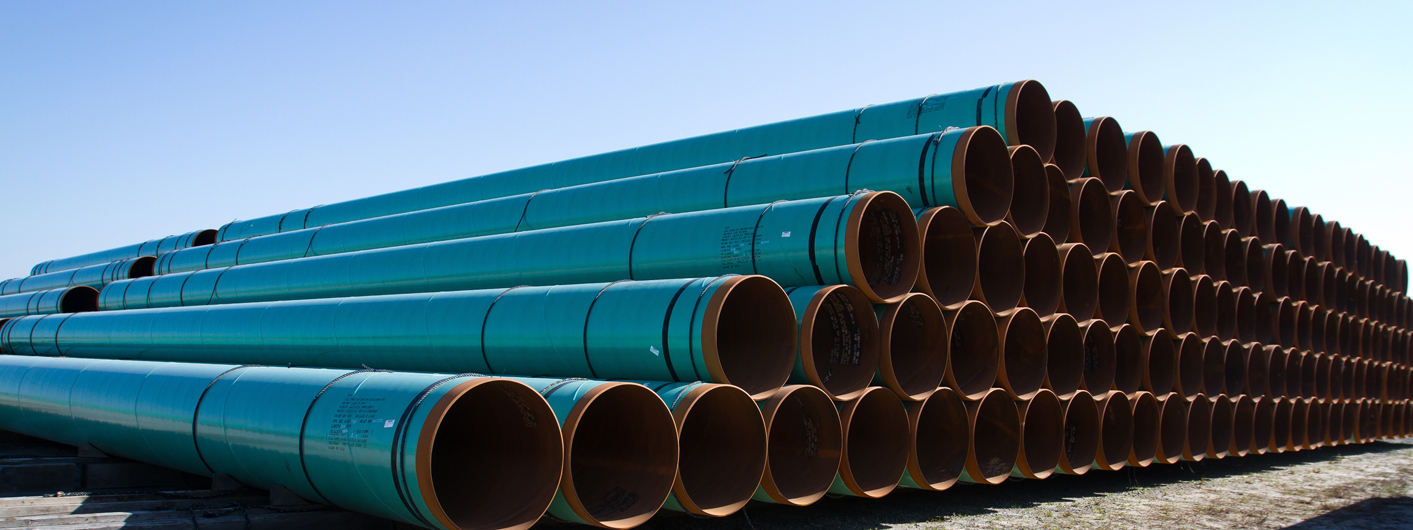

SAW pipes

Spiral submerged arc welded line pipe for water, slurry and infrastructure.

16"–200" OD · 5–90 mm wall · IBR & non-IBR

03 · BUTTWELDR = 1.5 D
03

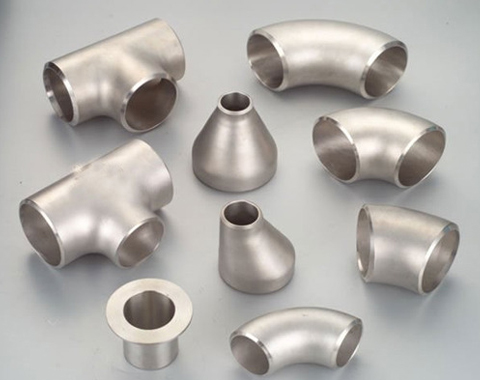

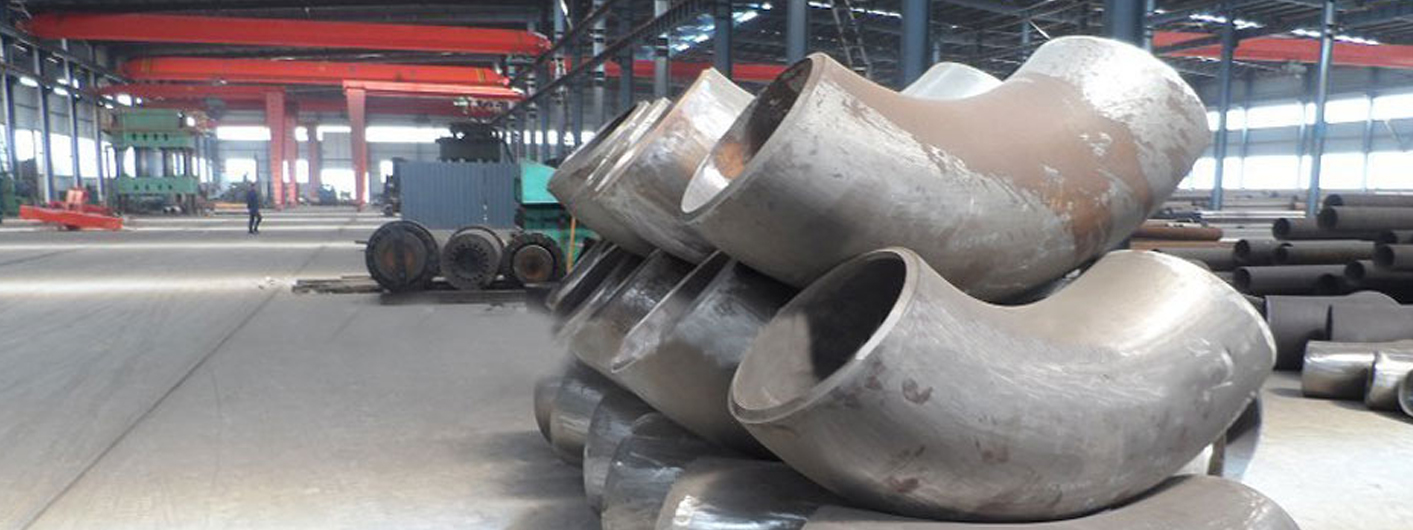

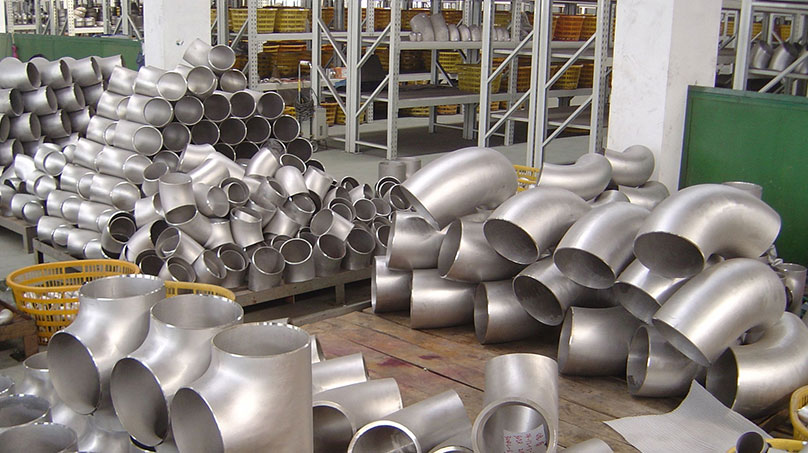

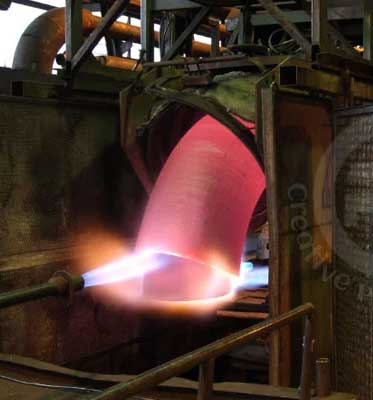

Buttweld fittings & bends

Elbows, tees, reducers, stub ends and piggable bends to 22D.

1/4"–32" NB seamless · to 48" NB welded · B16.9

04 · FORGED3000# – 9000#
04

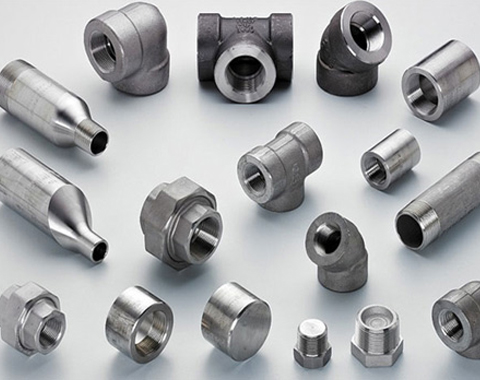

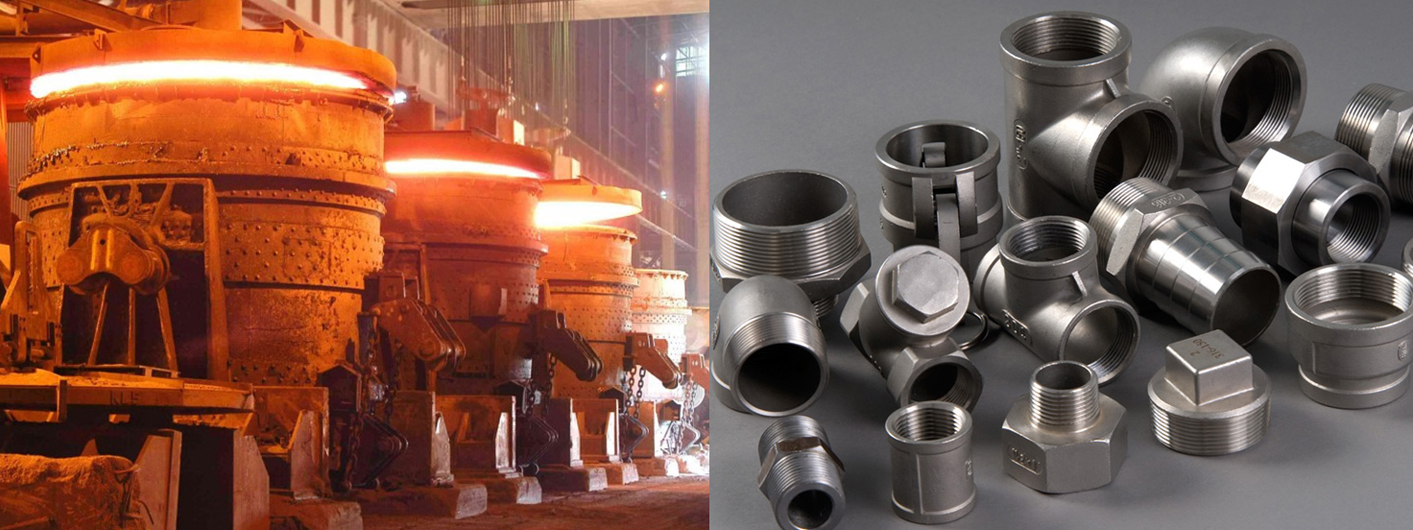

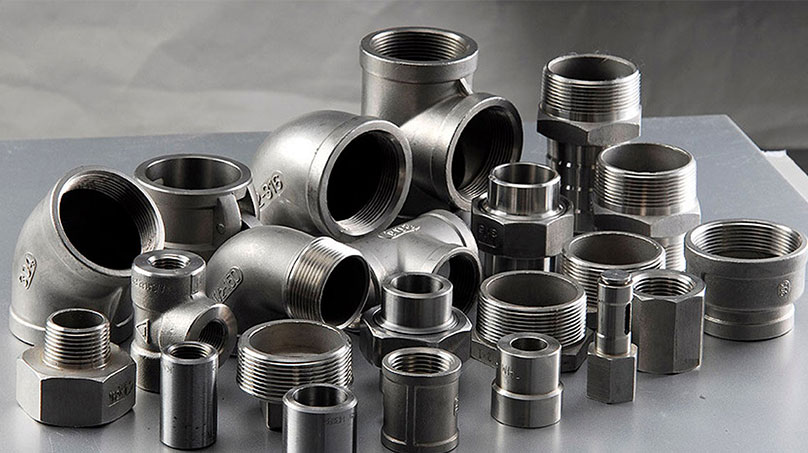

Forged & socketweld fittings

Elbows, tees, couplings, olets and nipples from forged bar.

1/4"–4" NB · 3000# / 6000# / 9000#

05 · RAISED FACE150# – 2500#
05

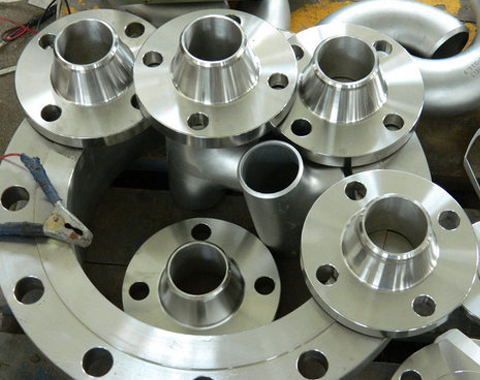

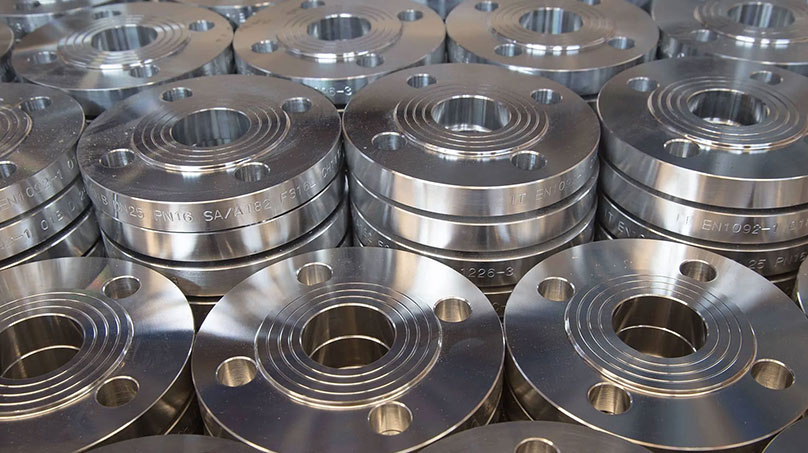

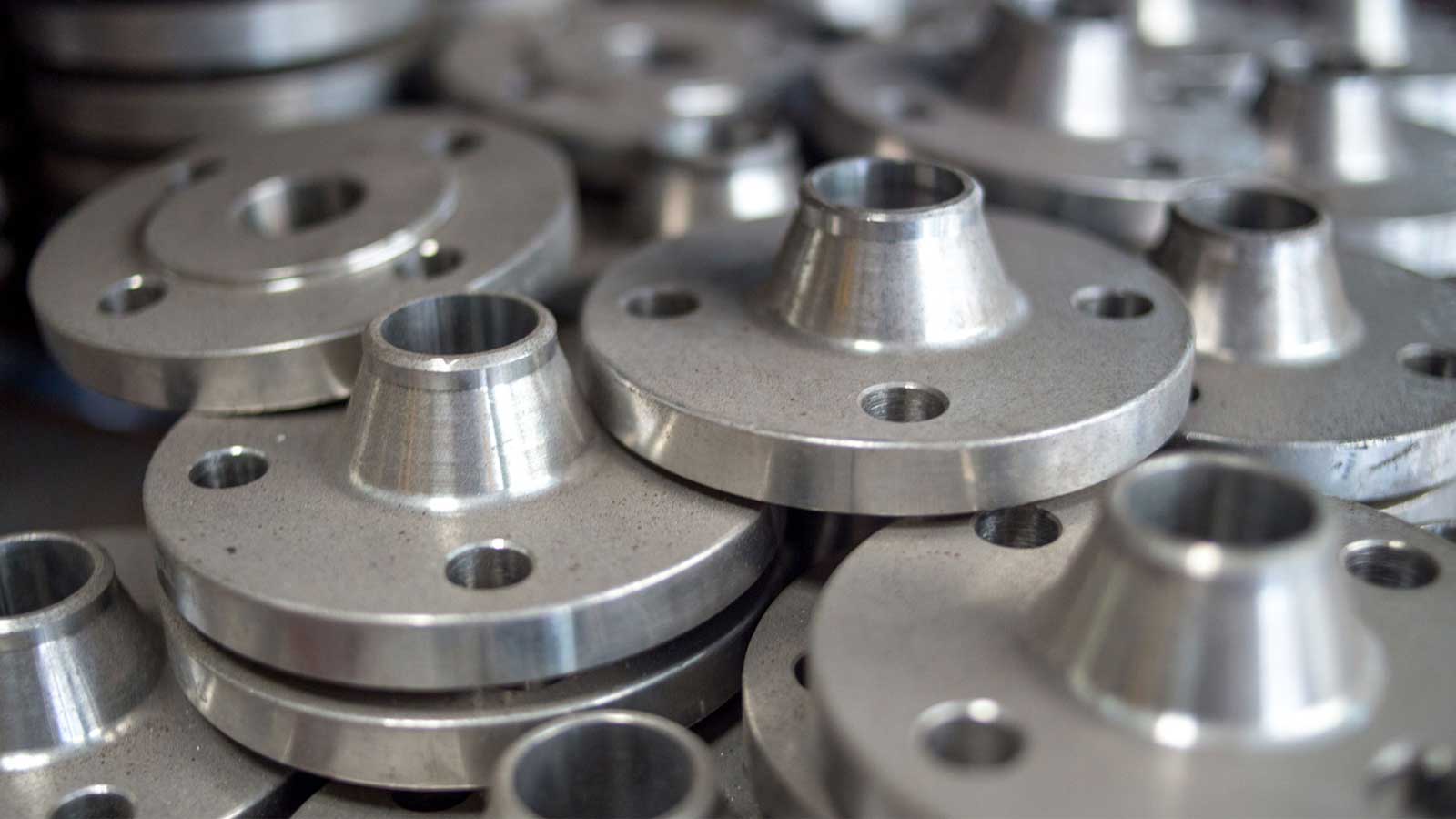

Flanges

Weld neck, slip on, blind, lap joint, orifice and long weld neck.

150#–2500# · B16.5, B16.47 · duplex & super duplex

06 · TWIN FERRULE1/8" – 2" OD
06

Instrumentation & hydraulic fittings

Twenty fitting types across BSP, JIC, ORFS, NPT, SAE and DIN 2353.

SS 304 / 316 · duplex & super duplex · carbon steel · brass

07 · FLOW CONTROLCLASS 150 – 2500
07

Valves

Ball, gate, globe, check, butterfly, needle, relief and actuated.

Class 150–2500 · manual, gear & actuated

08 · PLATE & COILASTM A240
08

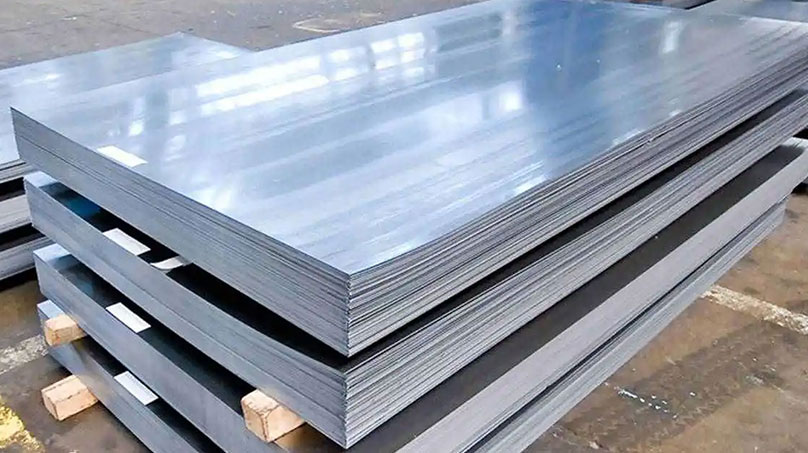

Sheets, plates & coils

Plate, sheet and coil in stainless, duplex and nickel alloys.

ASTM A240 · hot & cold rolled · cut to size

09 · STUD BOLTM3 – M100
09

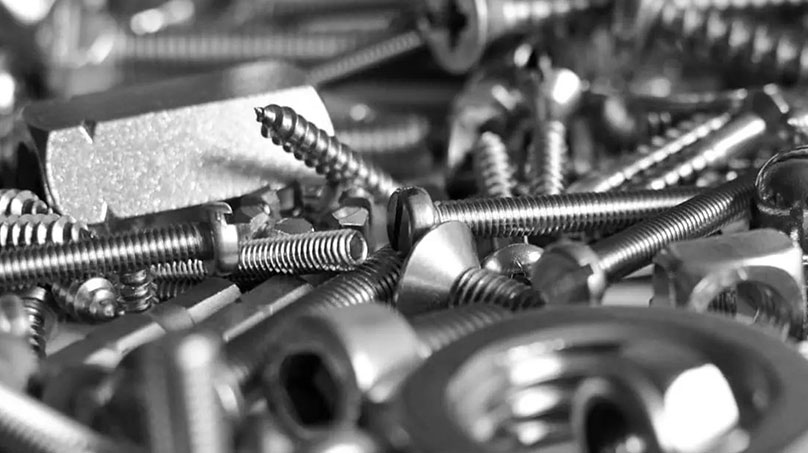

Fasteners & gaskets

Stud bolts, hex bolts, nuts, washers and gaskets.

M3–M100 · B7 / B8 / B8M · cut gaskets

01 / 09

Drag, or use the arrows

Specifications

The grades we quote from stock.

Pick a line to see what we carry and the standards it is supplied against. Anything not listed is made to order against your specification.

Seamless & welded

Pipes & tubes

Stainless
ASTM/ASME SA 312 — TP 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L
Carbon
A 53, A 106 Gr. A/B/C, API 5L Gr. B, X42–X70, A671 / A672, IS 1239, IS 3589
Alloy
A 335 Gr. P1, P5, P9, P11, P12, P22, P91
Size
Seamless 3/8"–24" NB · welded 1/2"–72" NB (ERW / SAW / EFSW)
Wall
Sch. 5S to Sch. XXS
Service
IBR certified · NACE / HIC / hydrogen service compliant

Nickel & special alloys

Inconel, Monel & Hastelloy

Inconel
600 (N06600), 601 (N06601), 625 (N06625), 690 (N06690), 718 (N07718)
Monel
400 (N04400), K-500 (N05500)
Hastelloy
C-276 (N10276), C-22 (N06022), C-2000 (N06200), B-2, B-3, X
Standards
SB 167, SB 444, SB 165 seamless · SB 517, SB 705, SB 725 welded · SB 622 / 619 / 626
Tubes
A213, A249, A268, A269, A789 · 6.0–101.6 mm OD · BA or annealed & pickled
Duplex
S31803, S32205, S32750, S32760

Wall thickness, to scale

Pick a size. See what the schedule does to the bore.

A quarter inch to twenty-four. Dimensions follow ASME B36.10M; weights are for carbon steel, and stainless runs about 2% heavier. Confirm against the standard before you order.

Cutaway view of the selected pipe size and schedule, drawn to scale

Wall and bore are drawn to the real ratio for the size and schedule selected. The outside diameter is normalised so every size fills the frame.

Nominal bore

Schedule

Outside diameter168.3mm
Wall thickness7.11mm
Inside diameter154.08mm
Weight, carbon steel28.26kg/m

6" NB Sch. 40 — the workhorse size for process headers and cooling water lines.

Drilling, to scale

Every flange, drilled to the class.

Bolt circle, hole count and hole size change with the pressure class, not just the thickness. Pick a size from 1/2" to 24" and the face redraws against ASME B16.5. Classes 900 to 2500 quoted on request.

Scaled face view of the selected flange showing bolt circle and drilling

Face view drawn to the real ratio of outside diameter, bolt circle, hole size and bore. The sweep marks the drilling check.

Nominal bore

Pressure class

Flange OD279.4mm
Bolt circle241.3mm
Bolts8 × 3/4"
Flange thickness25.4mm
Raised face dia215.9 mm
Approx weight, WNRF10.4 kg

6" Class 150 — 8 bolts on a 241.3 mm circle.

Centre to face

Fittings take up space. Here is how much.

Laying lengths to ASME B16.9, from 1/2" to 24". Pick the fitting, the size and the schedule, and the profile redraws in section with the dimension that matters for your isometric.

Scaled profile of the selected buttweld fitting with laying length marked

Wall thickness and laying length are drawn to the real ratio for the size and schedule selected.

Fitting

Nominal bore

Schedule

Centre to face228.6mm
Matching pipe OD168.3mm
Wall thickness7.11mm
Approx weight8.1kg

6" Sch. 40 long radius elbow — radius 1.5 × nominal bore.

One joint, five parts

What ships in a flanged connection.

Every piece in it comes from one supplier, on one certificate set. Scroll to close the joint; pick any part to isolate it.

Separated
Assembled

Keep scrolling to close the joint — scroll back up to pull it apart.

Eight bolts, one gasket, two weld preps. Proportions follow a Class 300 raised face joint; your line list sets the real sizes.

Shop fabrication

A spool, welded one joint at a time.

Scroll and the run builds itself: cut, bevel, set the bends, weld out, flange and test. What leaves our shop is a finished spool, not a box of loose fittings.

Cut and bevelled
0%
01Cut & bevel — pipe cut to the isometric and bevelled to ASME B16.25 ready for the root run.
02Set the bends — long radius elbows fitted and tacked, alignment checked against the drawing.
03Weld out — GTAW root with SMAW or GTAW fill, by welders qualified to ASME IX.
04Examine — dye penetrant or radiography on the completed welds, to the percentage your spec calls for.
05Flange & test — flanges set square, spool hydrotested, pickled and marked with its line number.

One spool, one weld map, one set of certificates — so site bolts it up instead of fabricating it twice.

How an order runs

From enquiry to documents at the port.

Seven stages, with the hold points your inspector will ask about marked. Third-party inspection is welcome at any of them.

01 / 07

Enquiry

Your MTO or BOM is read line by line and matched to grade, schedule and end preparation. Equivalents are offered in writing, never substituted silently.

Quote in 24 hours
02 / 07

Material selection

Material selected against the specification, with the mill certificate read before anything is cut or committed to the order.

Hold · MTC review
03 / 07

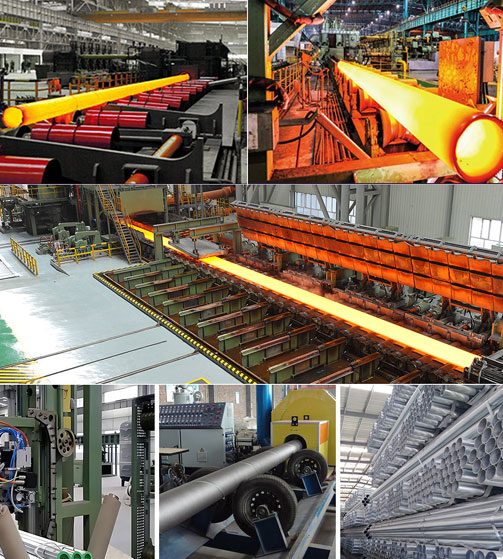

Manufacturing

Seamless and welded pipe, pressed and forged fittings, and machined flanges produced at our units and partner facility.

Hold · First-off
04 / 07

Heat treatment

Solution annealing, normalising and stress relief as the grade requires, followed by pickling and passivation.

Hold · Process record
05 / 07

Testing

Hydrostatic or pneumatic test, eddy current and ultrasonic examination, PMI, hardness and dimensional check on the sampling plan.

Hold · TPI welcome
06 / 07

Documentation

EN 10204 3.1 material test certificate raised against the heat, with IBR, NACE and service certificates where the order calls for them.

Hold · Certificate
07 / 07

Packing & dispatch

Bundled, capped and crated to ISPM-15 for sea freight. Test certificate and inspection release travel with the consignment.

Sea-worthy packing
At any stage

Bring your inspector

DNV·GL, SGS, Lloyd's Register, EIL, PDIL and NPCIL have released material from our works. Stage inspection is arranged on request.

Inspection on request

01 / 07 · HOW YOUR ORDER MOVES

Enquiry

Dispatch

From our yard to your port.

Scroll to follow a consignment ↓

01 / PACKING

Bundled and crated

Pipes are bundled, end-capped and strapped, then crated to ISPM-15 for sea freight.

02 / LOADING

Into the container

Crates are loaded and secured in the container, and the doors are sealed.

03 / SHIPPING

Out to sea

FOB or CFR from Mumbai, with your documents travelling with the cargo.

Reliability
at every
milestone

Heat number, EN 10204 3.1 certificate and inspection release travel with every consignment, from our yard to your port.

Logistics that works
as hard as you do.

SEA FREIGHT · FOB / CFR

ISPM-15 EXPORT PACKING

DOCUMENTS TRAVEL WITH THE CARGO

Pitting resistance

Why the grade costs what it costs.

PREN is the number that decides whether a grade survives chlorides. It is calculated from the composition, so it is the same figure your metallurgist works to:

PREN = %Cr + 3.3 × %Mo + 16 × %N

Figures are typical for the grade, not a specific heat. Above about 32 a grade is generally considered seawater capable; above 40 it is classed super duplex. Your own heat's certificate carries the real composition.

020406072

Tested, certified, traceable

Paper that travels with the goods.

Certification is not a badge on a homepage. Every consignment leaves with the documents that let your inspector accept it without a phone call.

Issued with every consignment

  • Original material test certificates to EN 10204 3.1, raised against the heat the goods were made from
  • Government and Lloyd's Register approved laboratory test certificates
  • Third party inspection release notes
  • Guarantee and warranty certificates for all supplies
  • Service specification certificates — IBR, NACE, HIC and hydrogen service
  • Destructive and non-destructive examination reports from external chemical and mechanical laboratories
ISO 9001:2015Quality management, audited annually
ISO 14001:2015Environmental management
ISO 45001:2018Occupational health & safety
PED 2014/68/EUPressure equipment directive, for supply into the EU
PED Certified and ISO Certified Company marks

Copies of the current certificates go out with every quotation. D-U-N-S 855477405.

Released against inspection by

Third party inspection agencies: DNV-GL, SGS, Lloyd's Register, EIL, PDIL, NPCIL and others

Field service

Where this material ends up.

Each sector sets its own corrosion, temperature and pressure case — and its own certificate trail.

01

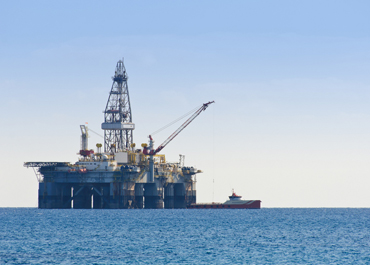

Oil & gas

Wellhead and topside piping, impulse and sample lines, instrumentation hook-ups in NACE-compliant grades.

02

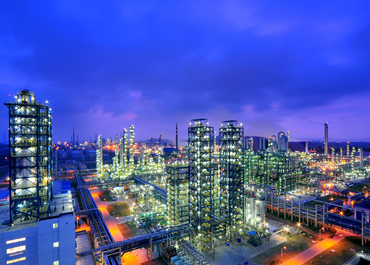

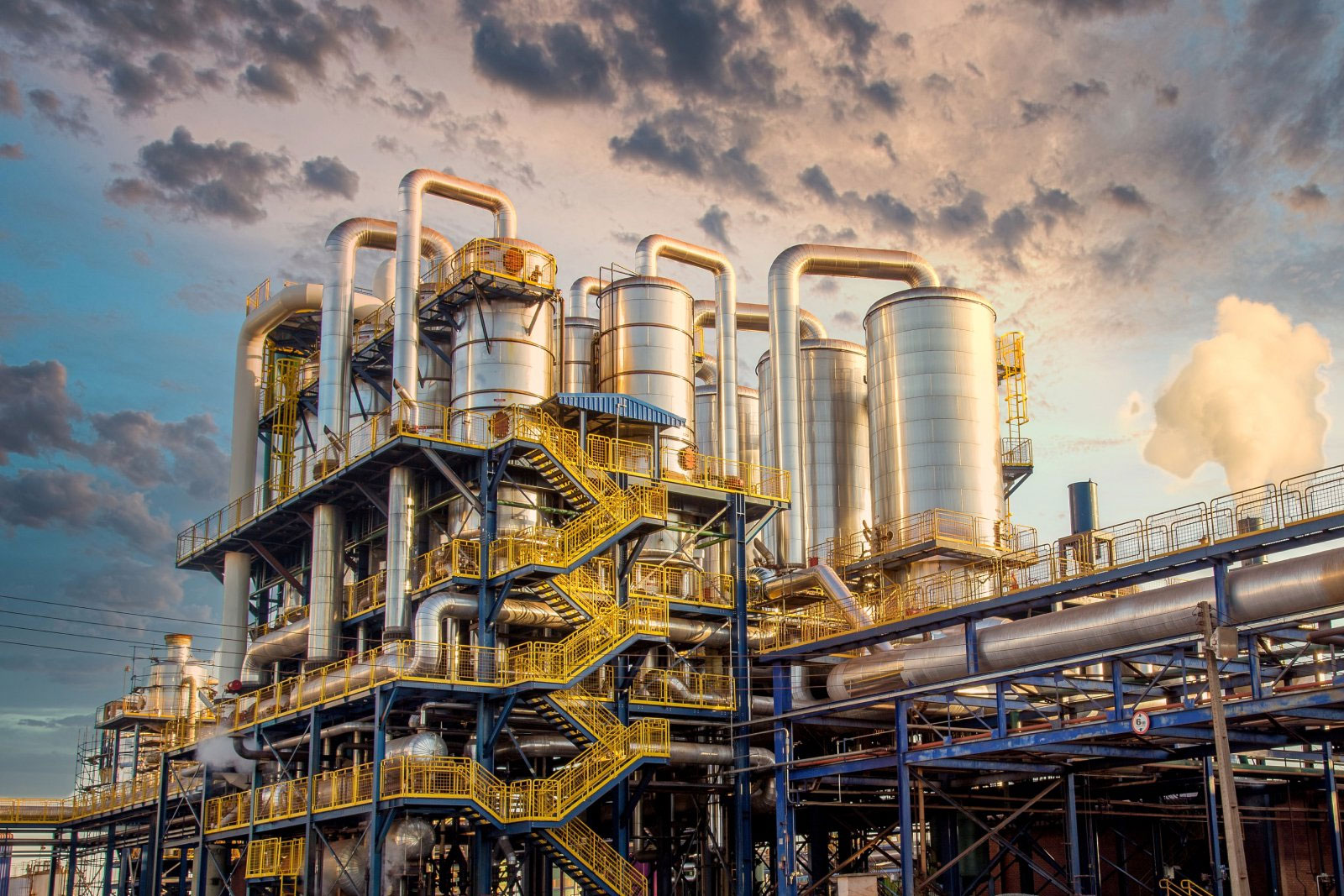

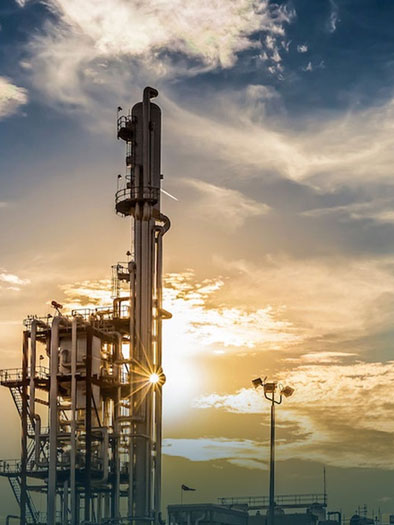

Refining & petrochemical

Hydrocracker and reformer piping, heater coils, flare lines and aggressive acid service in alloy and high-nickel grades.

03

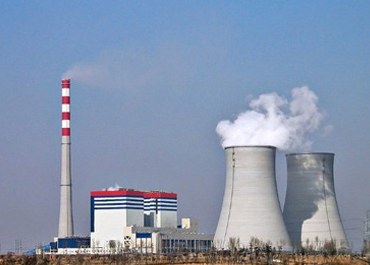

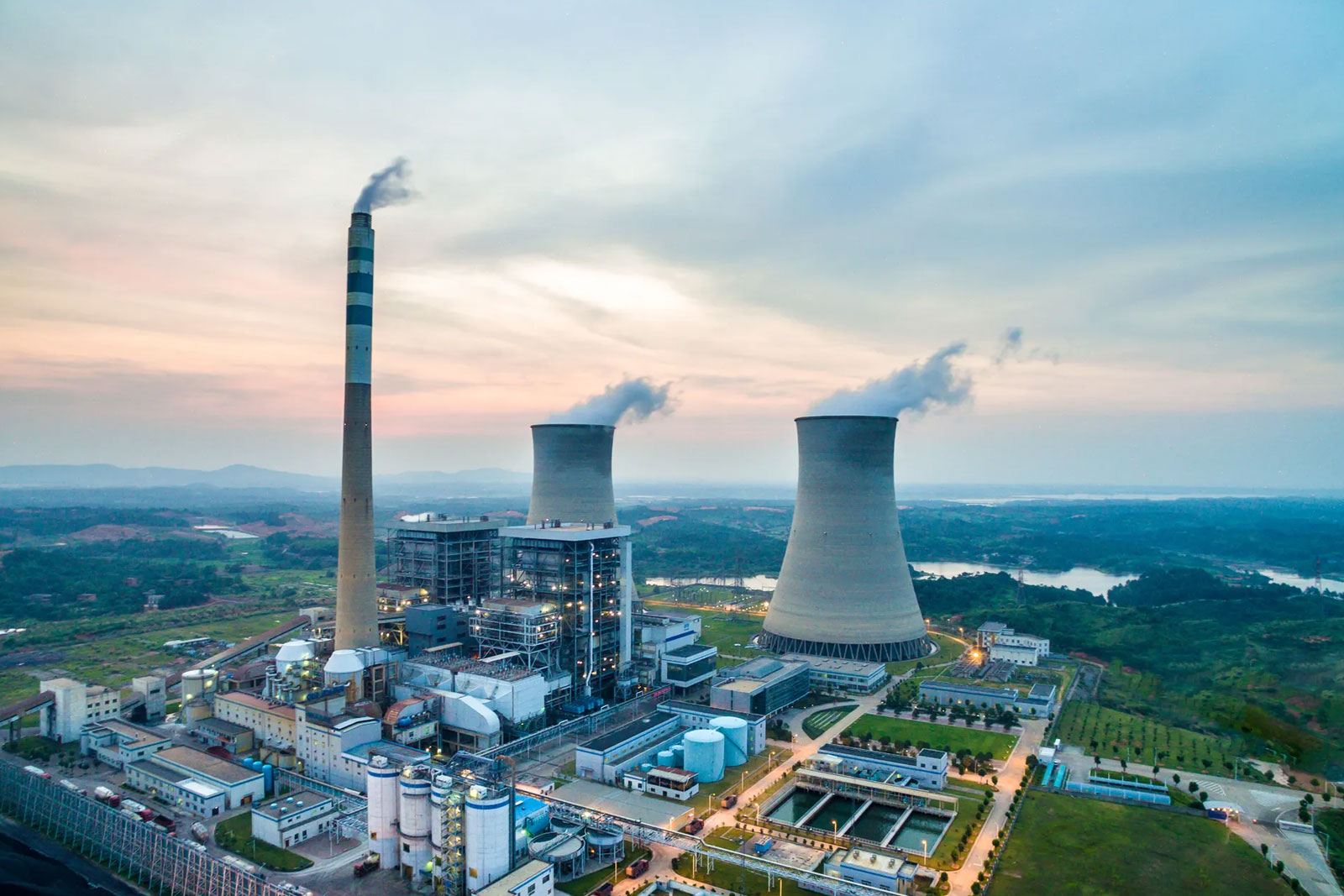

Power & nuclear

Boiler and superheater tubing, high-pressure steam distribution and condenser lines, supplied with IBR certification.

04

Marine & desalination

Cupro-nickel and super duplex for seawater intake, ballast systems and high-salinity service.

05

Fertiliser & chemical

Ammonia and urea synthesis lines, process piping in 904L, Alloy 20 and Hastelloy.

06

EPC & project supply

Consolidated project packages for contractors and consultants — pipe, fittings, flanges, bolting and gaskets on one order.

Reach

Mumbai, with representation in the Gulf.

Corporate office in South Mumbai, a sister company in the UAE and an appointed agent in Saudi Arabia.

35°E45°E55°E65°E75°E85°E10°N20°N30°NARABIAN SEAINDIASAUDI ARABIAIRANAFRICAMUMBAICorporate office · Taloja stockyardTARAPURManufacturing unitVADODARAManufacturing unitUNITED ARAB EMIRATESKwality Oil Field EquipmentAL JUBAIL · KSAAppointed agent

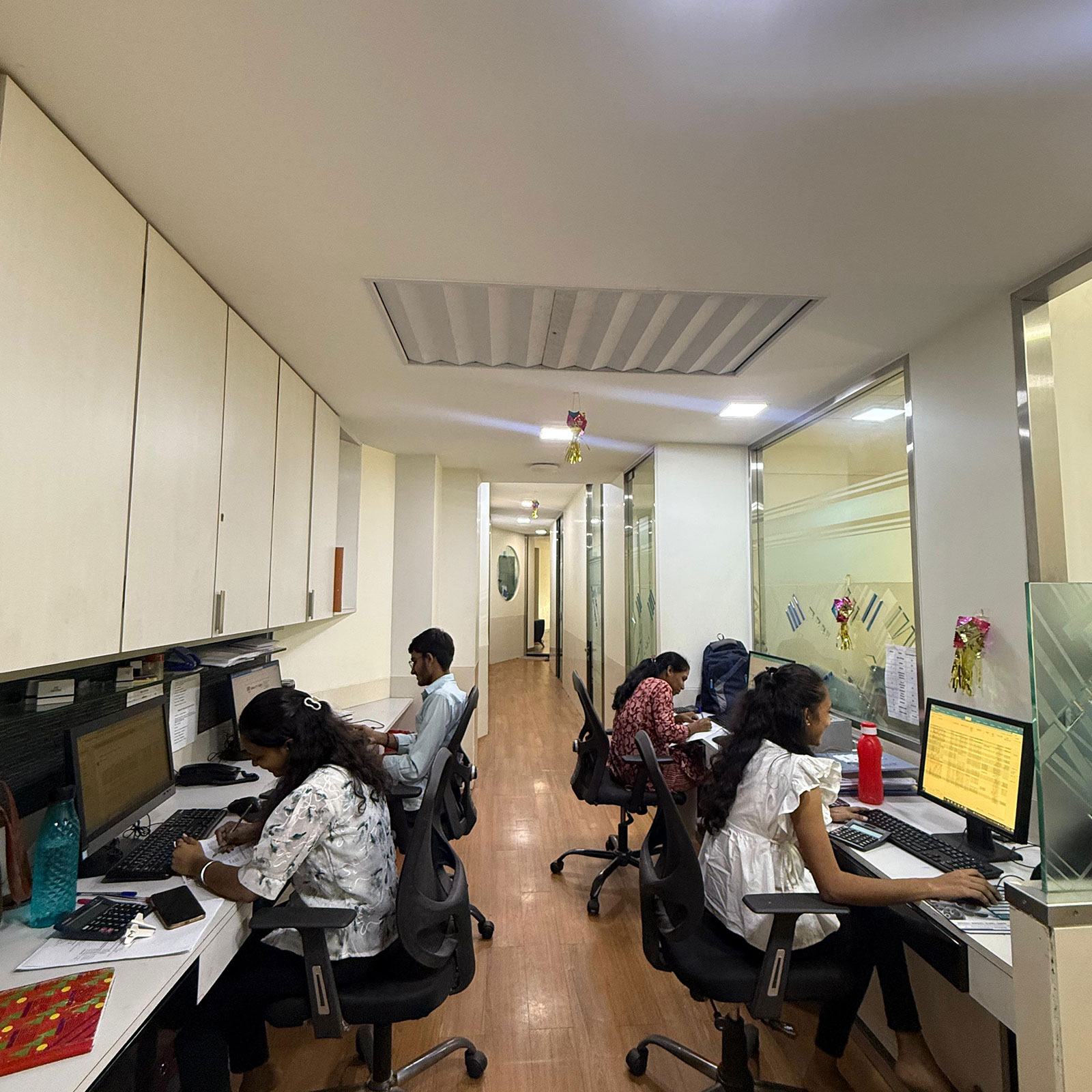

Corporate office — Mumbai
2nd Floor, Plot No. 311, Office No. 5/B, Kanji Mansion,
Sardar Vallabhbhai Patel Road, Khetwadi,
Mumbai 400 004, India
United Arab Emirates
Kwality Oil Field Equipment — associate company serving the UAE and wider Gulf market.
Kingdom of Saudi Arabia
Represented by our appointed agent at Al Jubail for enquiries, inspection coordination and delivery within KSA.

Send your BOQ

Build your BOQ. Send it in one click.

Add your line items below and press send. The BOQ goes straight to global@kwalitytubes.com and you get an acknowledgement by email. We quote within one working day, Monday to Saturday IST.

BOQ CONSOLETO: GLOBAL@KWALITYTUBES.COM

Press send and the BOQ goes straight to our inbox at global@kwalitytubes.com, with an acknowledgement to your email.
